CANFD Protocol Converter

USR-CAN315/316 | CANFD Protocol Converter

The USR-CAN315/316 are DIN-rail CANFD to Ethernet/RS485/RS232 converters. This series supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus conversion, and custom conversion.

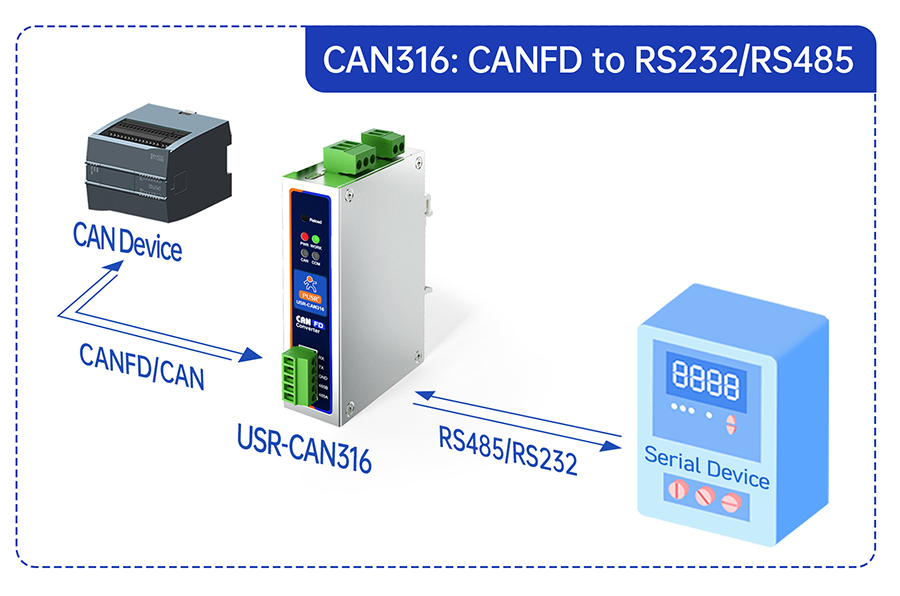

The CAN316 enables interconnection between CAN devices and serial devices, while the CAN315 connects CAN devices to network devices.

Key Features

• port version & Network port version

• CANFD Protocol：Compatible with CAN2.0 A/B

• 5 Operating mode：Supports Modbus protocol

• 32 sets of filters：software configurable

• High reliable：EMC protection level 3

• Wide opertating tempterature： -40℃~+85℃

• DIN rait mounting

• >Ultra-wide baud rate：CANFD can reach up to 5Mbps

• Supports configuration via host computer and AT commands, as well as serial port firmware upgrade.

Ethernet to CANFD,
Bidirectional Data communication

With this CANFD converter, users can achieve data communication and conversion between Ethernet and CANFD device.

RS485/RS232 to CANFD,
Bidirectional Data communication

With this CANFD converter, users can achieve data communication and conversion between RS485/RS232 and CANFD device.

CANFD to Modbus RTU/TCP Gateway

Supports 64 groups of receiving messages and 64 groups of sending messages.The device can act as both a Modbus master and a slave.

Scene 1：Sensors and other Modbus communication devices are connected to the CAN bus control system.

CANFD to Modbus RTU/TCP Gateway

Scene 2：CAN devices support access to Modbus master control systems.

Breaking Barriers: CANFD for Mass Adoption

Traditional CAN devices are ushering in an upgrade wave with the arrival of high-performance, full-featured CAN FD protocol. We're breaking down price barriers to make CAN FD technology more accessible than ever - enjoying cutting-edge performance at traditional CAN prices.

Extreme - speed transmission： 5Mbps, with a 400% increase in data throughput.

High data volume: 64 bytes. The single - frame data transmission volume is increased by 8 times.

Ultra - low latency: Microsecond level, the response time is shortened by 80%.

5 Operating Modes Supported

Supports protocol conversion for flexible data transmission.

Transparent Conversion ： Achieve original conversion between CANFD frames and serial frames.

Transparent Conversion with ID ：Transfer the ID information in serial frames to CANFD frames.

Standard Conversion ：Conversion between 13-byte standard CAN frame format and 69-byte standard CANFD frame format.

5 Operating Modes Supported

Modbus Protocol Conversion：
Realize Modbus data transmission over CAN bus through packet segmentation and reassembly.

Note: CAN and Modbus data must be editable.

5 Operating Modes Supported

Custom protocol conversion： Users can customize frame headers and trailers to enable bidirectional data conversion.

Multiple Hardware Protection, Reliable and Stable

EMC protection: level 3

Wide operating temperature: -40℃~+85℃

Dual watchdog: hardware & software watchdog, ensure stable operating

Wide power input: DC 9-36V, supports power input anti-reverse

32 Sets of Configurable Filters

USR-CAN315/316 supports filtering data according to standard frame, extended frame and custom. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference.

Compact & Powerful: Multi-Featured Excellence

① Support for standard frames and extended frames

② Support for registration packets and heartbeat packets

③ Network port upgrade

④ Support for custom baud rate

⑤ Configuration parameters via AT commands/upper computer

Wide Baud Rate

• CAN FD arbitration field baud rate : 5Kbps~1Mbps

• CAN FD data field baud rate：100Kbps~5Mbps

Ordering Guide

PUSR provides 5 different models for users to choose from, please see the table for specific differences between different Products.

Applications

1. Automotive Electronics

2. Industrial Automation

3. Ev charging

4. Traffic Monitoring

Product Dimensions

Dimensions: 110×27×76.1mm (Including mounting ears and rail).

What's in the box?

1. Main unit *1

2. Network cable (Standard only for CAN315)

3. Certificate of compliance
